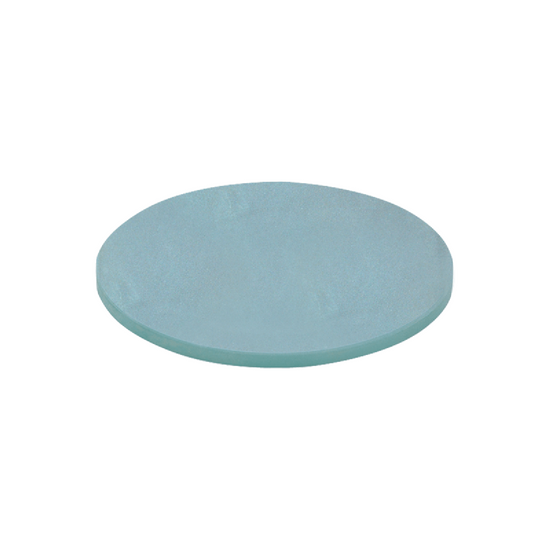

Dia. 100x3mm Heat-Resistant Glass SA02141502

SKU:
SA02141502
Condition:
New
$24.98
& Free shipping * Contiguous USA Only
Pre-Order. Place your order and we’ll email you once we have an estimated delivery date.
Other Shipping Options
Quick Overview
Heat-Resistant Glass. Plate Size: Dia. 100x3mm. heat-resistant to 1200℃.


SA02141502 Heat-Resistant Glass
Microscope Plate
Plate TypeHeat-Resistant Glass
Plate MaterialQuartz Glass
Plate Size Dia. 100x3mm
Notesheat-resistant to 1200℃




Technical Info

Instructions
Microscope PlateClose Λ
According to different objects to be observed, the appropriate platen should be selected. The microscope plate materials include black and white, black and white finish; transparent glass, frosted glass, metal, etc.
Standard stands are generally configured with a suitable microscope plate, but different plates may need to be purchased separately.
Black and white microscope plate are made of general plastics, and the different backgrounds in black and white make the object more prominent.
Finish microscope plate eliminates reflections during observation.
Transparent glass plate is used when observing transparent or translucent objects, and the use of transmitted light source is to make the light penetrate the object to be observed as much as possible.
Finish glass plate, with its rough glass surface, can make the transmitted light more uniform and create a diffusing effect, avoiding exposure of the light shadow of the filament directly onto to the observed object.
Metal plate, relatively more solid, is more suitable when it is necessary to operate and cut.
Microscope plate is generally round shaped, on one side of the base there is a spring clip. When installing, align the plate with the clamp and push it in, and then press down the other end, so that the plate is smoothly embedded in to the circular card slot of the bottom plate.
When removing, grab the other end of the clip, push and lift up the plate.
Quartz GlassClose Λ
Quartz glass slide is a glass slide made of quartz material. Its main component is silica, the content of which is up to 99.99%, and its Mohs hardness is grade seven, with high temperature resistance, low thermal expansion coefficient, thermal shock resistance and good electrical insulation properties. Visible light transmittance can reach more than 85%.
PackagingClose Λ
After unpacking, carefully inspect the various random accessories and parts in the package to avoid omissions. In order to save space and ensure safety of components, some components will be placed outside the inner packaging box, so be careful of their inspection.
For special packaging, it is generally after opening the box, all packaging boxes, protective foam, plastic bags should be kept for a period of time. If there is a problem during the return period, you can return or exchange the original. After the return period (usually 10-30 days, according to the manufacturer’s Instruction of Terms of Service), these packaging boxes may be disposed of if there is no problem.

More Info

Packing
Transportation Carton Dimensions(1)15.2x15.2x15.2cm (6x6x6″)
Total Gross Weight of Transportation(kilogram)0.21
Total Gross Weight of Transportation(pound)0.46
